Suspended Under-bench Cabinets
- Can be suspended on C-frame bench and
H-frame bench
- Fully closed top
- For bench height of 750 mm and 900 mm
- Hinges with 270° opening angle, comply with ANSI Grade 1
standard
- Drawer Load Capacity (kg): 30
- Height adjustable shelves with safety shelf supports
- Shelf load capacity (kg): 30
- Doors and drawers are provided with soft plastic buffers
Options:
- Full extension drawer slides, 40kg load capacity with
self-closing mechanism
- Locks
| Material |
|
Carcass, top, door, shelf and drawer front |
19 mm thick Melamine Faced MDF
19 mm thick HPL Faced Plywood |
|
Drawer bottom |
12 mm thick Melamine Faced MDF
12 mm thick HPL Faced Plywood |
|
Back-wall |
6 mm thick Melamine Faced MDF |
|
Drawer slides and sides |
Powder coated steel |
|
Hinge |
Die-cast zinc, nickel plated |
|
Handle |
Die-cast aluminum, brushed chrome |
| Colour |
Carcass, top, drawer, and back-wall |
White (RAL 9010) |
|
Door and drawer front surface |
White (RAL 9010)
Light grey (RAL 7035)
Blue (RAL 5023)
Walnut |
|
Door and drawer front edges |
White (RAL 9010)
Grey (RAL 7040) |

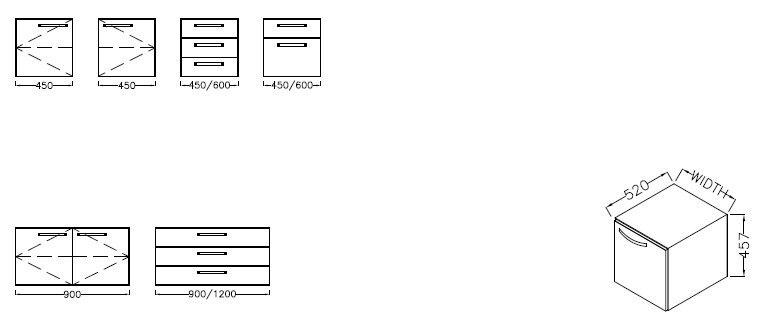

| Dimensions |
Width* (mm) |
450 600 900 1200 |
|
Depth (mm) |
520 |
|
Height (mm) |
457 607 |
* Suspended Under-bench Cabinets are available in other widths.
