Type FCS

Fully closed with Service Tiles, Service Panels, and Tool Rack
Available in two heights
For bench heights from 720 mm to 950 mm
Single sided (wall assembly) or double sided (center assembly)
Suitable with 150 mm deep shelves
Wide range of tile and rack options

Options:

Access panel with push-to-close latch
Strut channels and pipe clamps
Laboratory scaffolding

Type FCS.jpg

Material

Material	Upright	Epoxy powder coated aluminum extrusion
	Access panel, fixed panel, skirting, and internal beams	Epoxy powder coated steel
	Top cap	Plastic
	Adjustable feet	Metal core with plastic glide
Colour		RAL 7040

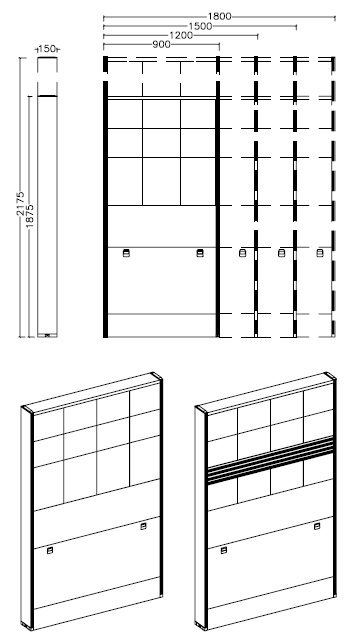

Dimensions	Service spine width (mm)	900 1200 1500 1800
	Service spine depth (mm)	150
	Service spine height (mm)	1875 2175
	Height adjustment (mm)	-0/+25

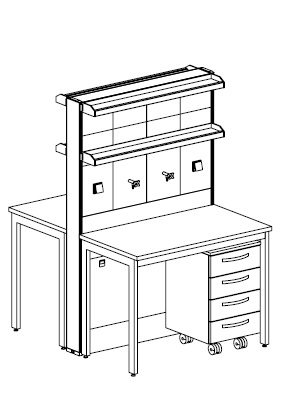

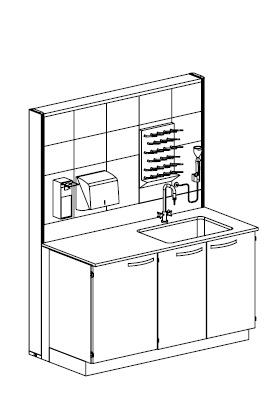

Wall assembly with tiles and tool rack	Wall assembly with tiles	Center assembly with tiles and shelf units

MOSAIC
laboratory furniture systems

The laboratory requirements are indeed a truly dynamic solution that can promptly...

Please contact us for the full detailed Mosaic Catalogue..
