Type FOS

For bench heights from 720 mm to 950 mm

Single sided (wall assembly) or double sided (center assembly)

Suitable with 225 mm and 300 mm deep shelves

Options:

Material

Material	Upright	Epoxy powder coated aluminum extrusion
	Access panel, fixed panel, skirting, and internal beams	Epoxy powder coated steel
	Top cap	Plastic
	Adjustable feet	Metal core with plastic glide
Colour		RAL 7040

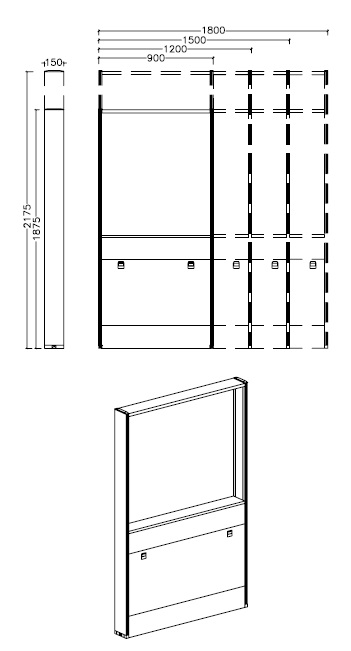

Dimensions	Service spine width (mm)	900 1200 1500 1800
	Service spine depth (mm)	150
	Service spine height (mm)	1875 2175
	Height adjustment (mm)	-0/+25

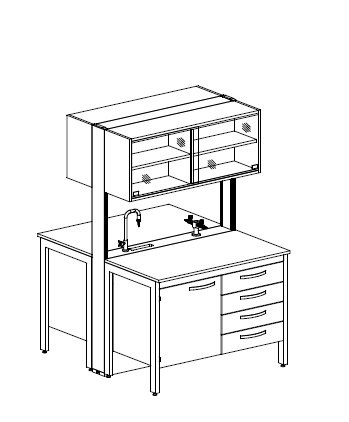

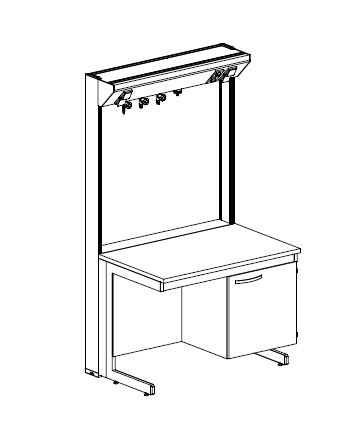

Center assembly with overhead cabinet	Wall assembly with service wing	Center assembly with shelf units

MOSAIC
laboratory furniture systems
